miyoshi kikai | Products | Standard Type Universal Joint

- Complying with JIS & Original Type
  The standard joint which is used in industrial equipment.

  Dimensional drawing by shape

  Dimensional drawing by shape
- Dimensional drawing by shape

  Dimensional drawing by shape

  Dimensional drawing by shape

  Dimensional drawing by shape
- It is a joint system part for multi-purpose.

  PIJON LIST

Strong Type B

bootsBoots
axisAxial attachment
additionAdd process
60°Most curve angle Up to 60°
30°Most curve angle Up to 30°

High Torque, Conventional Use Material S45C

A hole for a spring-pin attached should be machined together with a shaft at a location of ℓ/2.
Use a boot and oil pack to extend the life of joint.
Designate new JIS or old JIS for key, when the type of shaft-hole shape is B or T.
A spring-pin is not attached for a joint with a key way.

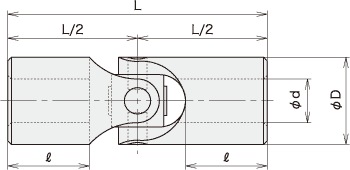

■Type B Dimension Table

Attachment ： spring-pin 2 pieces

	φd^H7	φD	L	ℓ	New JIS key		Old JIS key		TAP M	Dimension of spring-pin for fixing	Swing of the center	Mass kg	Max. revolution min^-1	Max. transmission torque capacity N・m
	φd^H7	φD	L	ℓ	a^Js9	b	a^Js9	b	TAP M	Dimension of spring-pin for fixing	Swing of the center	Mass kg	Max. revolution min^-1	Max. transmission torque capacity N・m
B-06	6	12	50	18	2	1.0	2	1.0	M3	2×12	0.10	0.03	1700	8
B-08	8	16	56	19	3	1.4	3	1.5	M3	2.5×16	0.10	0.06	1500	18
B-10	10	20	68	23	3	1.4	4	1.5	M4	3×20	0.14	0.11	1300	31
B-12	12	24	84	29	4	1.8	4	1.5	M4	4×25	0.14	0.20	1100	55
B-14	14	28	94	31.5	5	2.3	5	2.0	M5	5×28	0.14	0.31	950	88
B-16	16	32	104	34.5	5	2.3	5	2.0	M5	5×32	0.14	0.45	830	127
B-18	18	36	120	40	6	2.8	5	2.0	M6	6×35	0.20	0.65	750	186
B-20	20	40	124	40	6	2.8	5	2.0	M6	6×40	0.20	0.82	670	245
B-22	22	44	130	41	6	2.8	7	3.0	M8	6×45	0.20	1.06	600	333
B-25	25	50	140	43	8	3.3	7	3.0	M8	8×50	0.20	1.44	530	490
B-30	30	60	178	56	8	3.3	7	3.0	M8	10×60	0.25	2.74	440	736
B-35	35	70	200	62	10	3.3	10	3.5	M10	10×70	0.25	4.26	380	1177
B-40	40	80	228	70	12	3.3	10	3.5	M10	10×80	0.25	6.20	330	1765
B-45	45	90	250	76	14	3.8	12	3.5	M10	12×90	0.25	8.61	300	2550
B-50	50	100	270	80	14	3.8	12	3.5	M12	12×100	0.25	11.45	260	3334
B-60	60	120	300	84	18	4.4	15	5.0	M12	13×120	0.25	18.24	220	5688

※You may download 3D CAD drawings by clicking on the part number of interest.
